Vertical Heating Air Curtain
Exclusive Design
Brand new vertical cabinet body; Full metal outer cover; Easy installation and combination.
Good Performance
Centrifugal fan structure provide strong air barrier, high efficient.
It is available to customize the length as per the mounting height.
Suitable for malls, workshops, garage entrance and other places where are unable to install above the entrance.
Double Function
Two types of airflow - heated or cool air. Available in all seasons.
Heated models build in PTC Heater which is safety and high power output.
SPECIFICATIONS
| MODEL | Voltage / Frequency (V /Hz) |
Height of cool air section (m) | Height of heated air section (m) | Power (kW) | Air velocity of cool air section (m/s) | Air velocity of heated air section (m/s) | Air volume (m³/h) |
Noise (dB) |
Size (L*W*H) (mm) |
|
| Motor | PTC | |||||||||
| RM-LC2000S-3D | 380/50 | 0 | 2 | 0.85 | 24 | 0 | 11 | 4150 | ≤60 | 480*330*2000 |
| RM-LC2500S-3D | 380/50 | 0 | 2.5 | 1.1 | 24 | 0 | 11 | 4500 | ≤61 | 480*330*2500 |
| RM-LC3000S-3D | 380/50 | 1 | 2 | 1.25 | 24 | 11 | 11 | 6250 | ≤63 | 480*330*3000 |
| RM-LC3500S-3D | 380/50 | 1.5 | 2 | 1.55 | 24 | 11 | 11 | 7250 | ≤67 | 480*330*3500 |
| RM-LC4000S-3D | 380/50 | 2 | 2 | 1.7 | 24 | 11 | 11 | 8300 | ≤70 | 480*330*4000 |
| RM-LC4500S-3D | 380/50 | 3 | 2 | 2.1 | 24 | 11 | 11 | 8500 | ≤72 | 480*330*4500 |

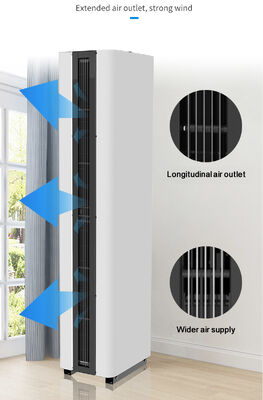

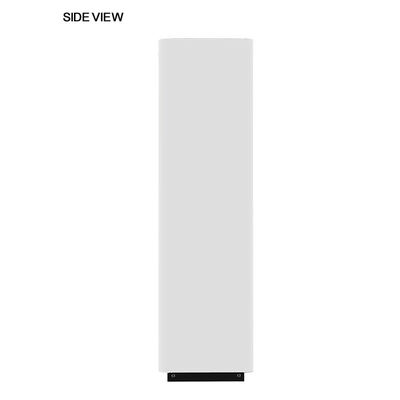

PRODUCTS PHOTOS
