ホーム /製品/産業空気カーテン/Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty

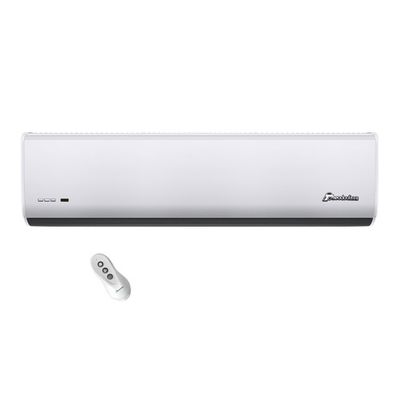

Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty

2
MOQ
$199
価格
Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
ブレード素材: プラスチック
取り付けタイプ: 壁掛けファン、壁掛け式
電圧: 380 v
気道: 8～9m/秒
コアコンポーネント: モーター
材料: アルミニウム合金
サイズオプション: 90cm、120cm、150cm
頻度: 50Hz
電源: 220V/380V/50Hz
発熱体: PTCヒーター

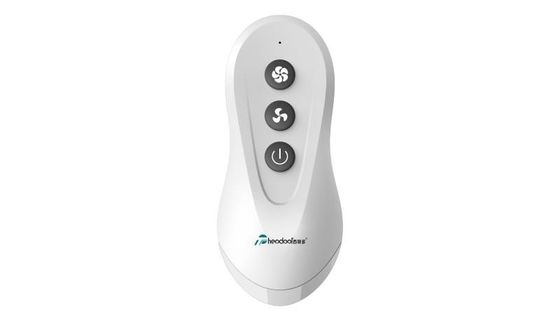

コントロールタイプ: リモコンとキースイッチ
風量（大）: 1600-3150 m3/h
風量（小）: 1300-2550 m3/h
ヒーター電源: 2～3.5KW
正味重量: 15.5～22.5kg
ハイライト:

PTC Heating Thermal Air Curtain

,

Remote Control Heating Air Curtain

,

1 Year Warranty Industrial Air Curtain
基本情報
起源の場所: 中国広州
ブランド名: Theodoor
証明: ISO9001, 14001, CE
お支払配送条件
製品の説明
Theodoor 6G Series Thermal Air Curtain 0.9m, 1m, 1.2m, 1.5m With Heating Function
Product Description
Theodoor 6G PTC Thermal Type Heating Door Air Curtain 0.9m to 1.5m With Thermostat
Key Features
  • Air duct innovation: Combines cross-flow and centrifugal air duct advantages for high air volume and velocity
  • High quality performance: Patent design with upgraded performance, excellent appearance and superior quality
  • Upgraded airflow with patented technique: Features new cross-flow fan design with optimized internal structure for powerful air duct
  • Low noise operation: Innovative design reduces noise by 10-20% for quiet, comfortable operation
  • Premium construction: Aluminum shell, quiet wind wheel, high quality PTC heater with triple protection
Applications
Ideal for high grade restaurants, hotels, exclusive shops, and commercial buildings.
Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty 0
Technical Specifications
Model Voltage V/HZ Air Volume (m3/h) Air Speed (m/s) Heater power (KW) Net W. (Kg) Size (mm)
RM-1209T6G-D/Y 220~ 50 1600 7 6.5 15.5 900x218x247
RM-1212T6G-D/Y 220~ 50 2400 8.5 3 19 1200x218x247
RM-1215T6G-D/Y 220~ 50 3150 11 3.5 22.5 1500x218x247
RM-1209T6G-3D/Y 380~ 50 1600 7 6.5 15.5 900x218x247
RM-1212T6G-3D/Y 380~ 50 2400 8.5 3 19 1200x218x247
RM-1215T6G-3D/Y 380~ 50 3150 11 3.5 22.5 1500x218x247
Optional Features
Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty 1 Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty 2
What is an Air Curtain?
An air curtain creates an "invisible air door" using a high speed motor with cross flow or centrifugal blower. Widely used in electronic, pharmaceutical, food processing, precision manufacturing, chemical, and commercial industries, it effectively isolates indoor and outdoor environments to maintain temperature and humidity control. Also known as air door or air barrier.
Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty 3
Company Information
PRECISION PRODUCTION: Founded in 2002, Theodoor operates from a 30,000 square meter facility in Guangzhou's innovation district. Our modern production workshop utilizes advanced industrial equipment and detection instruments to ensure product precision and reliability.
INNOVATION TECHNOLOGY: With continuous innovation, Theodoor maintains national standard environmental simulation and long-time running laboratories. We hold over 80 national invention patents and have achieved ISO9001, ISO14001, CCC, CE, CB, ROHS, ERP, UL, SASO, INMETRO and SAA certifications.
Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty 4 Theodoor 6G Series Thermal Air Curtain with PTC Heating and Remote Control for Industrial Use with 1 Year Warranty 5
Our Services
  • OEM and ODM services
  • Custom label and box design
  • Shipping arrangement
  • After sales spare parts support
Frequently Asked Questions
How to select suitable air curtain?
Consider these factors when selecting an air curtain:
  • Application requirements
  • Door height and width
  • Outside wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Air curtain size
  • Design and aesthetics
  • Noise level
  • Power consumption
Why choose us?
  • Experience: 22+ years manufacturing and exporting experience with 100+ air curtain models
  • Engineering: Professional R&D and engineering teams specializing in air curtains
  • Technology: Advanced machinery ensures superior product performance and reliability
  • Quality: Rigorous testing at every production stage exceeds industry standards
  • Materials: Commitment to safety, efficiency, energy conservation and environmental protection
  • Quality Control: 100% product performance testing
