特徴

仕様

取り付けタイプ: 壁 /窓マウント

重さ: 15 kg

ファンモータータイプ: AC

利用できる長さ: 60cm、90cm、100cm、120cm、150cm、180cm、200cm

熱電力: 3kw、4kw、5kw、6kw、8kw、10kw、12kw

電圧/周波数: 220v または 380v /50Hz

発熱体: PTCヒーター

コントロール: リモート+ボタム

表紙の素材: アルミニウム

モーター出力: 160W 未満、200W 未満、230W 未満、300W 未満

気道: 8.5-9.5M/S

空気量: 1200m3/h、1700m3/h、2200m3/h、2700m3/h

ノイズレベル: 57dB、58dB、59dB、60dB

製品サイズ: 900x190x260mm、1200x190x260mm、1500x190x260mm、1800x190x260mm

ヒーター電源: 6/4/2KW、8/5/3KW、10/7/3KW、12/8/4KW

ハイライト:

PTC Ceramic Heater Air Curtain

220v or 380v Industrial Air Curtain

50Hz Heated Air Curtain

基本情報

起源の場所: 中国広州

ブランド名: Theodoor

お支払配送条件

ギャラリー

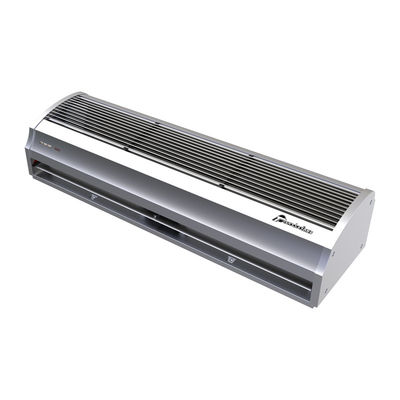

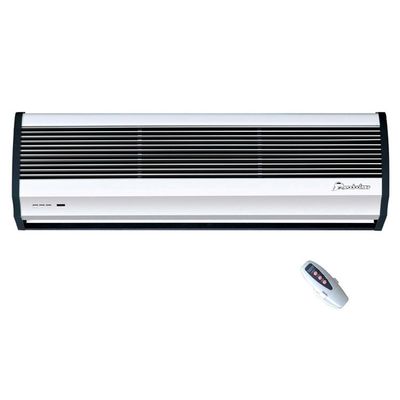

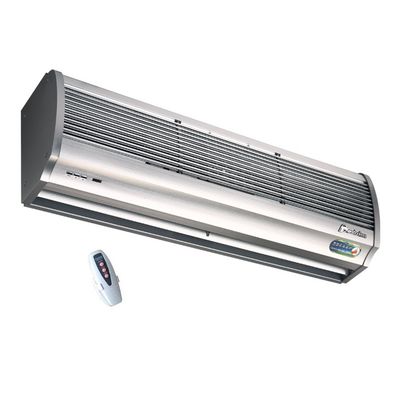

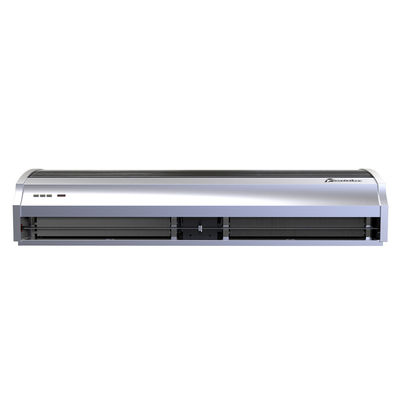

Industrial Air Curtain with PTC Ceramic Heater 220v or 380v 50Hz for Energy Efficient Temperature Control

製品の説明

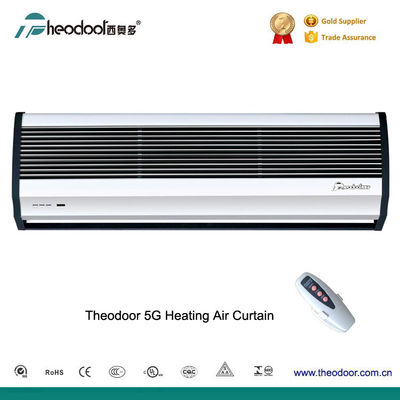

5G Series Air Heat Curtain with PTC Ceramic Heater

Theodoor heating air curtain creates an invisible air barrier that maintains clean, warm air for indoor environments.

Key Features

PTC Heater - Safe operation with high power output creates temperature-differentiated air barriers to prevent cold airflow and ensure comfortable heating
Dual airflow modes - Provides heating or normal air to effectively block cold draughts while maintaining interior comfort
Adjustable speeds - High and low speed settings with wireless remote control for versatile environment adaptation
Overheat protection - Built-in safeguards for both heater and motor ensure energy efficiency and protection during normal operation
Safety delay - 30-second warm air delay after shutdown allows PTC heater to cool, extending product lifespan

Technical Specifications

Model	Product Size (mm)	Voltage (V ~ Hz)	Motor Power (W)	Heater Power (KW)	Air Speed (M/S)	Air Volume (m³/h)	Net Weight (Kg)	Noise Level (dB)
RM-1209S-D/Y5G	900x190x260	220v ~50Hz	<160	6 / 4 /2	8.5-9.5	1200	13.5	57
RM-1212S-D/Y5G	1200x190x260		<200	8 / 5 /3		1700	16	58
RM-1215S-D/Y5G	1500x190x260		<230	10 / 7 /3		2200	18.5	59
RM-1209S-3D/Y5G	900x190x260	380v ~50Hz	<160	6 / 4 /2	8.5-9.5	1200	13.5	57
RM-1212S-3D/Y5G	1200x190x260		<200	8 / 5 /3		1700	16	58
RM-1215S-3D/Y5G	1500x190x260		<230	10 / 7 /3		2200	18.5	59
RM-1218S-3D/Y5G	1800x190x260		<300	12 / 8 /4		2700	24	60

What is an Air Curtain?

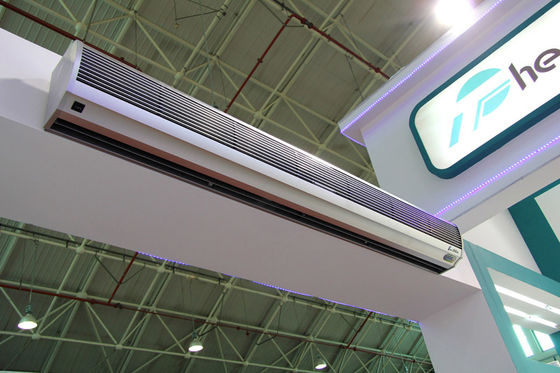

Theodoor air curtains are installed above entryways of stores, restaurants, hotels and other commercial spaces. They effectively isolate indoor and outdoor environments, maintaining temperature and humidity levels. Particularly effective when used with air conditioning systems, they preserve indoor climate conditions while reducing energy consumption. Air curtains also prevent infiltration of dust, pests, and harmful fumes from outside, creating a comfortable and clean indoor environment.

Why Choose Our Air Curtains?

22+ years experience in manufacturing and exporting air curtains with over 100 models for various environments
Professional engineering team dedicated to continuous research and development
Advanced technology using modern machinery to ensure product performance and reliability
Premium materials selected for safety, efficiency, energy conservation and environmental protection
Rigorous quality control with 100% product performance testing
Cost-effective solutions offering long-life, high-reliability products with superior performance
Responsive support with prompt attention to customer queries
