ホーム /製品/Theodoor の空気カーテン/220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating

220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating

100
MOQ
$99
価格
220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
取り付けタイプ: 壁 /窓マウント
重さ: 16のKG
ファンモータータイプ: AC
ファンタイプ: 遠心風扇 空気カーテン
材料: アルミニウム合金金属 +プラスチック
電圧: 120Vか230V
電源: 220-240/110V 50/60Hz
リモートコントロール: はい
ドアスイッチ: 利用可能
設置高さ: 3-4m
空気速度: 13-16 m/s
空気量: 1100-2520 m3/h
力: 230-470 w
サイズ: 900x215x230〜2000x215x230 mm
コアコンポーネント: モーター
ハイライト:

220-240/110V 50/60HZ Air Curtain

,

3-4m Installation Height Air Curtain

,

Aluminum Alloy Metal Air Barrier
基本情報
起源の場所: 中国広州
ブランド名: Theodoor
証明: CE
お支払配送条件
製品の説明
Latest Fashion Design Door Air Curtain and Air Barrier
Premium air curtain solution for hotels, shopping malls, and commercial entrances.
220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 0 220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 1 220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 2
Key Features
  • Fashionable aluminum body design - rustproof and maintains appearance
  • Screw-free exterior for elegant, seamless look
  • High-performance motor for safe, reliable operation

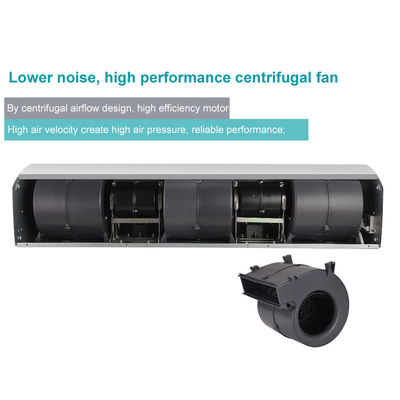

  • Centrifugal turbine technology for superior air velocity

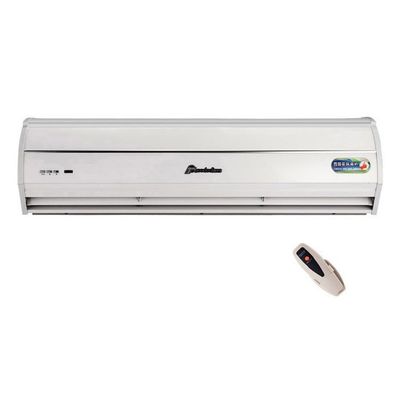

  • Updated remote control with high/low speed operation
  • Ideal for luxury hotels, supermarkets, stadiums, and airport terminals
  • Recommended installation height: 3-4 meters
Technical Specifications
Model Air velocity (m/s) Air Volume (m³/h) Power (w) Size (mm)
FM-3509-L/Y 13-16 1100 230 900x215x230
FM-3510-L/Y 13-16 1200 250 1000x215x230
FM-3512-L/Y 13-16 1500 290 1200x215x230
FM-3515-L/Y 13-16 1900 380 1500x215x230
FM-3518-L/Y 13-16 2280 450 1800x215x230
FM-3520-L/Y 13-16 2520 470 2000x215x230
220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 3 220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 4
Construction Details
  • Fashionable design with compact structure
  • Premium ABS and aluminum cover materials
  • Optimized to work with air conditioning systems
  • Simple installation process
About Theodoor Company
Theodoor is a professional manufacturer specializing in air curtains, heat pump water heaters, and ventilation systems. With over 22 years of experience, we offer products with superior performance, attractive designs, and fine workmanship.
Certifications:
ISO9001, ISO14001, CCC, CE, CB, ROHS, and UL certified
220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 5 220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 6 220-240/110V 50/60HZ Aluminum Alloy Metal Air Curtain with 3-4m Installation Height for Energy Saving and Comfortable Heating 7
Packing & Delivery
  • Carton or optional double boxes packaging with foam protection
  • Professional container loading handling
Frequently Asked Questions
Why choose Theodoor?
  • 22+ years manufacturing experience with 100+ air curtain models
  • Professional R&D and engineering teams
  • Advanced machinery and technology for reliable performance
  • Strict quality control with 100% product testing
What is an Air Curtain?
Theodoor Air Curtains create an invisible barrier that effectively isolates indoor and outdoor environments, maintaining temperature and humidity while preventing dust, pests, and fumes from entering. They work particularly well with air conditioning systems to improve energy efficiency.
Key Functions:
  • Dust-proof and insect prevention
  • Odor isolation
  • Energy saving
  • Comfortable heating
Selection Considerations:
  • Application requirements
  • Door height and width
  • External wind conditions
  • Building static pressure
  • Door structure
  • Ambient temperature
  • Size and design preferences
  • Noise level requirements
  • Power consumption
